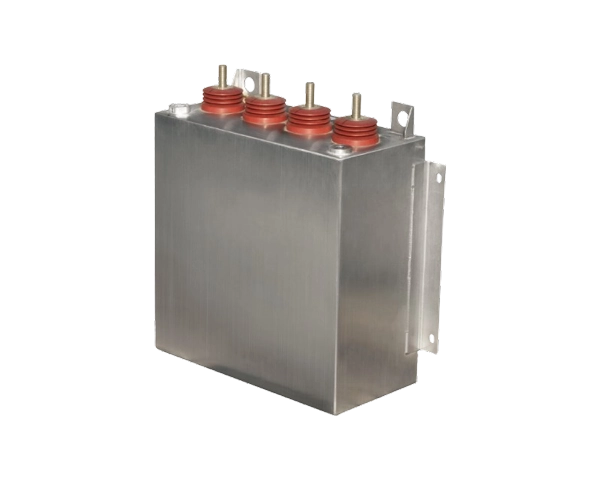

High Voltage DC (HVDC) support capacitors play a crucial role in modern power electronic systems, ensuring stable voltage, reliable current handling, and improved overall efficiency. For engineers, designers, and system integrators, selecting the right HVDC support capacitor is essential for applications in flexible DC power transmission, rail transit, electric vehicles, industrial automation, and renewable energy systems.

Key Selection Factors for HVDC Support Capacitors

1. Voltage Rating and Safety Margin

HVDC support capacitors must withstand high voltage stress without compromising safety. Selecting capacitors with a rated voltage above the maximum operating voltage ensures system reliability. Sun.King offers capacitors engineered for extreme voltage endurance, suitable for flexible DC systems and high-power converters.

2. Capacitance and Energy Storage Requirements

The correct capacitance determines the ability to stabilize DC voltage and buffer energy fluctuations. In high-power applications, precise capacitance matching reduces ripple, protects semiconductor devices like IGBT and SiC modules, and enhances system stability.

3. Current Handling and Ripple Performance

HVDC support capacitors must handle high ripple currents and repeated surges without degradation. Metallized film construction, as used in Sun.King capacitors, provides low loss, high stability, and resistance to large current impacts, ensuring long-term reliability.

4. Temperature and Environmental Tolerance

Capacitors must operate reliably under extreme temperatures and variable environmental conditions. Sun.King’s production environment maintains constant temperature and humidity, with a thousand-level cleanroom for winding processes, ensuring consistent thermal performance and reduced failure risk.

5. Durability and Testing Standards

High-quality HVDC capacitors undergo rigorous testing, including partial discharge testing, component impact discharge, and double 85 accelerated aging tests. Sun.King’s capacitors are validated in specialized shielding rooms and testing labs, guaranteeing precise measurements and compliance with international performance standards.

6. Size, Integration, and Compatibility

Compact and non-polarized design allows easy integration into various converters, laminated busbar systems, and solid-state switch applications. Capacitors must align with system layout and electrical parameters for optimal performance.

Key Benefits of High Voltage DC Support Capacitors

• Enhanced System Reliability: Reduces voltage fluctuations, protects semiconductors, and prevents unplanned downtime.

• High Efficiency and Low Loss: Metallized film design minimizes energy dissipation, improving overall converter efficiency.

• Long Service Life: Resistant to thermal and electrical stress, ensuring stable performance in heavy-duty industrial and transportation applications.

• Wide Application Scope: Suitable for HVDC grids, flexible DC systems, renewable energy converters, rail transit power supplies, and electric vehicles.

• Precision and Safety: Tested to international and domestic standards, ensuring consistent quality and safe operation under extreme conditions.

Why Choose Sun.King for HVDC Support Capacitors

As a technology-leading supplier of power electronic devices, Sun.King specializes in HVDC support capacitors designed for high-performance and high-reliability applications. Key advantages include:

• Advanced Production Lines: High-end equipment tailored for metallized film capacitor manufacturing, ensuring precision and consistency.

• Comprehensive Testing: Complete routine and type tests, including partial discharge and impact discharge testing, guaranteeing long-term reliability.

• Expertise in System Integration: Capacitors compatible with Sun.King’s IGBT and SiC modules, laminated busbars, and pulse power supplies.

• Global Application Experience: Deployed across renewable energy, smart grids, rail transit, electric vehicles, marine, and industrial automation.

Conclusion

Selecting the right HVDC support capacitor is vital for maximizing power system efficiency, stability, and longevity. By considering voltage ratings, capacitance, current handling, environmental tolerance, and durability, engineers can ensure optimal system performance. With Sun.King’s high-quality, rigorously tested HVDC support capacitors, designers and operators gain reliable, safe, and efficient solutions for modern power electronics applications.
