Introduction: The Critical Role of Converter Valve Protection in HVDC Systems

High-voltage DC (HVDC) transmission systems have become essential for efficient long-distance power delivery, renewable energy integration, and cross-regional grid interconnection. At the heart of every HVDC station are converter valves, which rely on thyristor-based switching devices to control high-power DC flows. However, these valves are highly sensitive to voltage surges, switching transients, and adverse environmental conditions, making reliable protection crucial.

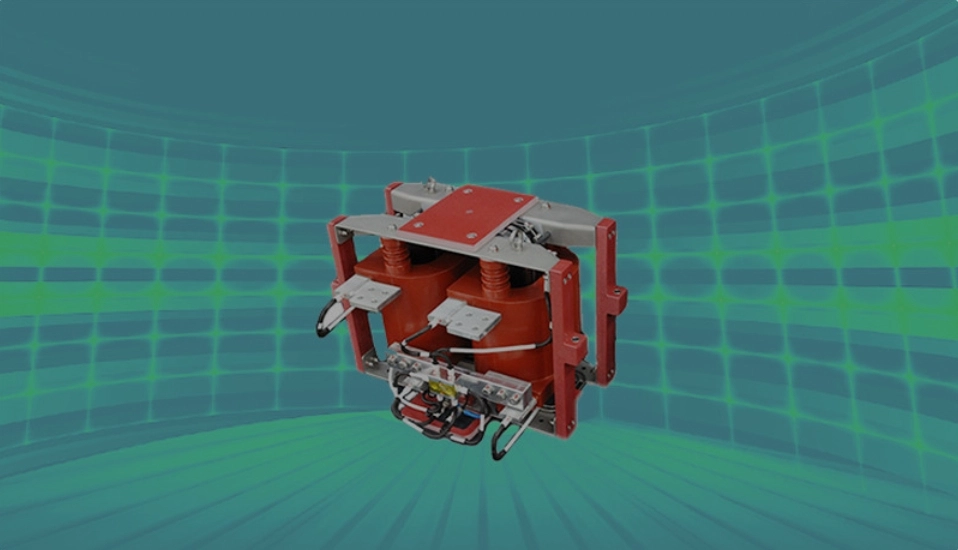

Anode saturable reactors, also called valve reactors, are specifically designed to protect converter valves. By limiting surge currents and absorbing transient energy, these reactors significantly reduce the risk of valve failure, enhancing system reliability and extending equipment lifespan.

Sun.King Technology has pioneered domestic production of these reactors in China and has successfully supplied over 23,000 anode saturable reactors to HVDC projects worldwide, becoming a benchmark in high-voltage DC transmission reliability.

Key Features of Sun.King Anode Saturable Reactors

Sun.King’s valve reactors are designed with high insulation strength, superior magnetic properties, and mechanical resilience, ensuring both operational efficiency and longevity. The main features include:

1. Advanced Pulse Characteristics
   The reactors are engineered to absorb high-energy pulses during switching, minimizing stress on thyristors and reducing the risk of catastrophic failures.

2. Turn-to-Turn Insulation Excellence
   High-quality insulation materials prevent electrical breakdown between windings, ensuring consistent and reliable performance under high voltage.

3. Surge Current Capacity
   Capable of withstanding extremely high surge currents during transient events, protecting the converter valve from electrical overloading.

4. Optimized Temperature Rise
   Core-type reactors with damping devices and shell-type reactors without damping devices are available. Core-type reduces temperature rise during operation, while shell-type offers quieter operation.

5. Durable Materials and Construction

   • Water-cooled high-insulation-strength coils

   • Ultra-thin, high-magnetic-permeability oriented silicon steel sheets

   • High-strength casings with excellent mechanical and insulation properties

   • Fully enclosed potting resin structure to reduce noise and enhance lifespan

6. Aesthetic and Compact Design
   Sun.King valve reactors combine functionality with simple, reasonable structures suitable for diverse HVDC station layouts.

Application in HVDC Systems

1. Voltage Surge Mitigation
   HVDC converter valves experience rapid voltage changes during line switching and transient faults. Anode saturable reactors absorb surge energy, preventing thyristor damage.

2. Weather-Related Stress Protection
   Adverse weather events, such as lightning or sudden line faults, can generate high-voltage spikes. Reactor design mitigates environmental impacts on converter valve performance.

3. Enhancing System Reliability
   By stabilizing current and voltage during transient events, reactors ensure continuous operation of HVDC transmission lines and reduce unscheduled maintenance and downtime.

4. Compatibility with Different Converter Designs

   • Shell-type reactors: Low-noise operations for urban or environmentally sensitive HVDC stations

   • Core-type reactors: Reduced temperature rise for high-power or heavy-load applications

Engineering Insights: How Reactor Design Reduces Valve Failures

Sun.King Technology emphasizes multi-layered engineering in reactor design:

• Magnetic Core Design
  Use of ultra-thin silicon steel sheets enhances magnetic permeability and reduces energy loss.

• Water-Cooled Coils
  Maintain optimal operating temperature under continuous high current, avoiding thermal stress.

• Potting Resin Technology
  Fully encapsulated windings reduce vibration, mechanical stress, and noise while enhancing insulation reliability.

• High-Strength Casings
  Protect internal components from environmental exposure and physical impacts.

These innovations collectively ensure reliable protection of thyristors, significantly reducing converter valve failure rates in both HVDC and UHVDC projects.

Maintenance Best Practices for Valve Reactors

Even with high-quality Sun.King reactors, maintenance is essential to sustain performance:

1. Regular Thermal Monitoring

   • Check operating temperature against design specifications

   • Identify abnormal heating early to prevent insulation degradation

2. Visual Inspection of Coils and Casing

   • Look for signs of mechanical stress or cracks

   • Ensure water-cooling systems function properly

3. Electrical Testing

   • Measure insulation resistance and verify turn-to-turn integrity

   • Conduct partial discharge tests to detect hidden faults

4. Environmental Control

   • Ensure indoor HVDC stations maintain controlled temperature and humidity

   • Avoid dust accumulation on reactor surfaces

5. Record-Keeping

   • Maintain detailed logs of operating conditions, maintenance actions, and incident reports for predictive maintenance.

Case Study: Improving HVDC Reliability in China

Sun.King supplied over 23,000 anode saturable reactors to 35 HVDC and UHVDC projects by the end of 2023. Key outcomes included:

• Reduction in converter valve failures by over 40% compared to previous installations using imported or substandard reactors

• Enhanced operational stability during high-demand periods, such as renewable energy integration peaks

• Extended equipment lifespan, reducing long-term maintenance costs for utilities

This demonstrates the critical role of high-quality anode saturable reactors in protecting HVDC infrastructure.

FAQ (Frequently Asked Questions)

Q1: What is the primary function of an anode saturable reactor?
A1: It protects HVDC converter valves by limiting surge currents, absorbing transient energy, and reducing stress on thyristors.

Q2: What are the differences between shell-type and core-type valve reactors?
A2: Shell-type reactors operate with lower noise but higher temperature rise; core-type reactors include damping devices to reduce temperature rise and handle heavy loads.

Q3: How often should valve reactors be inspected?
A3: Annually for standard HVDC projects, or more frequently in harsh environments or heavy-load applications.

Q4: Can anode saturable reactors prevent all types of converter valve failures?
A4: They significantly reduce failures caused by voltage surges and transients but must be combined with proper installation, system grounding, and preventive maintenance.

Q5: Why choose Sun.King reactors over competitors?
A5: Sun.King offers domestic production with global-quality standards, over 260 patents, TS-compliant manufacturing, and proven field performance in large HVDC projects.

Conclusion

Anode saturable reactors are critical protective devices in HVDC converter valve systems. By integrating advanced magnetic materials, water-cooled coils, high-insulation casings, and fully encapsulated structures, Sun.King reactors significantly reduce valve failures, enhance operational reliability, and extend equipment lifespan.

Through proven engineering, global R&D expertise, and rigorous testing, Sun.King has established itself as the leading supplier of anode saturable reactors in China and abroad. Proper installation, monitoring, and maintenance further ensure consistent HVDC system performance, safeguarding the backbone of modern power transmission infrastructure
